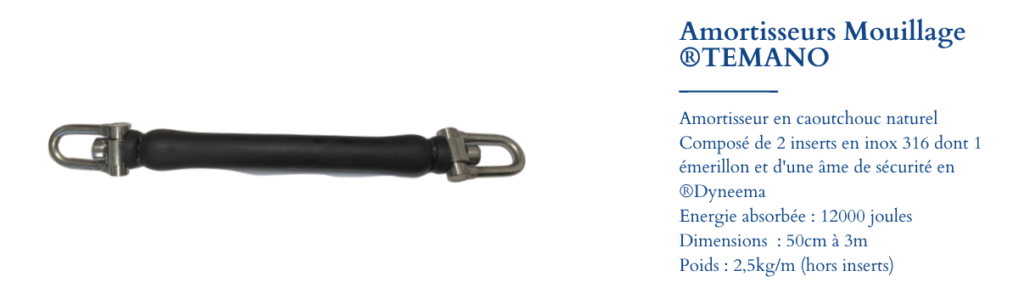

Temano® shock absorbers
Features of Temano® shock absorbers:
- Natural rubber
- 300% elongation
- Energy absorption 12 KJ/m
- No shaffing on the seabed 🌱
- Reduction of swing radius
- Higher energy absorption compared to a traditional chain system
- No corrosion
The ®Temano mooring line is self-cleaning and lightweight for handling. This means that maintenance can be performed by divers with a B certification, thus reducing maintenance costs. A replacement is recommended every 5 years.🌱.
Operation of Temano® shock absorbers during wave passage:
Temano® shock absorber tested on our submerged tensile test bench
Thanks to our tensile test bench, each shock absorber is tested up to its maximum operating load. During these tests, an energy curve is recorded and assigned to the corresponding shock absorber.
The ®TEMANO mooring line is self-cleaning and lightweight for handling. This means that maintenance can be performed by divers with a B certification, thus reducing maintenance costs. A replacement is recommended every 5 years.🌱.

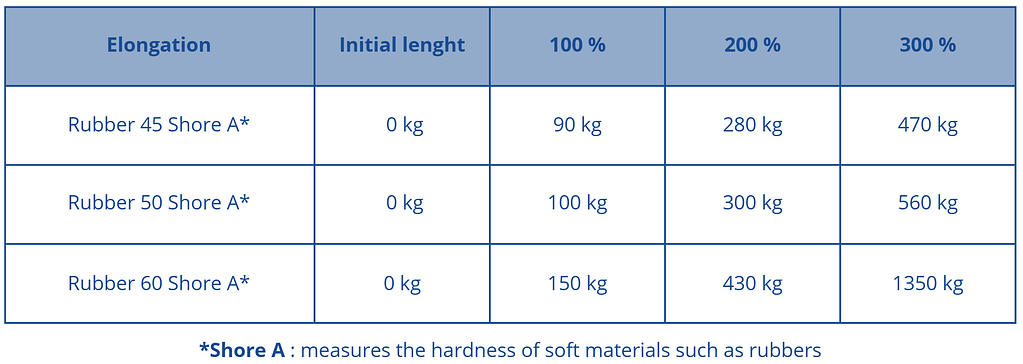

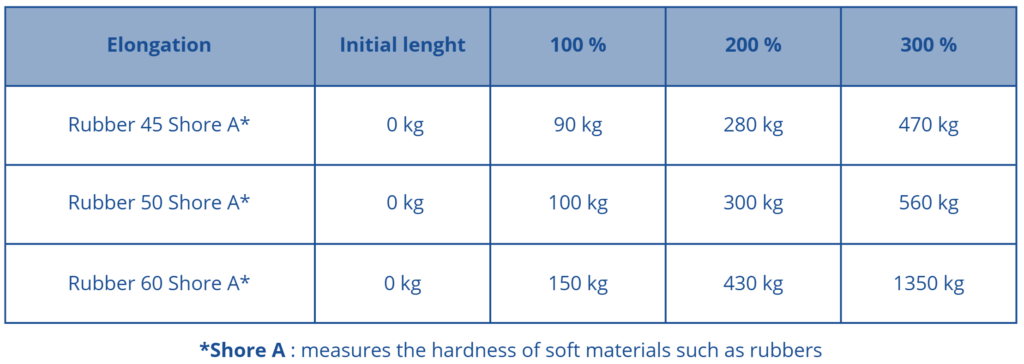

We can adjust the hardness and length of the elastomers according to the specific requirements.

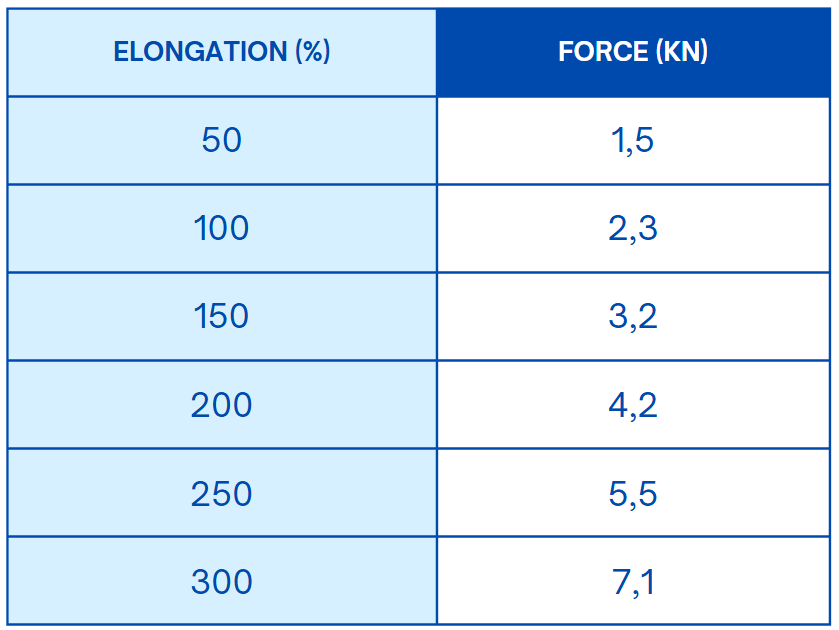

Elastomer with a hardness of 45 Shore A

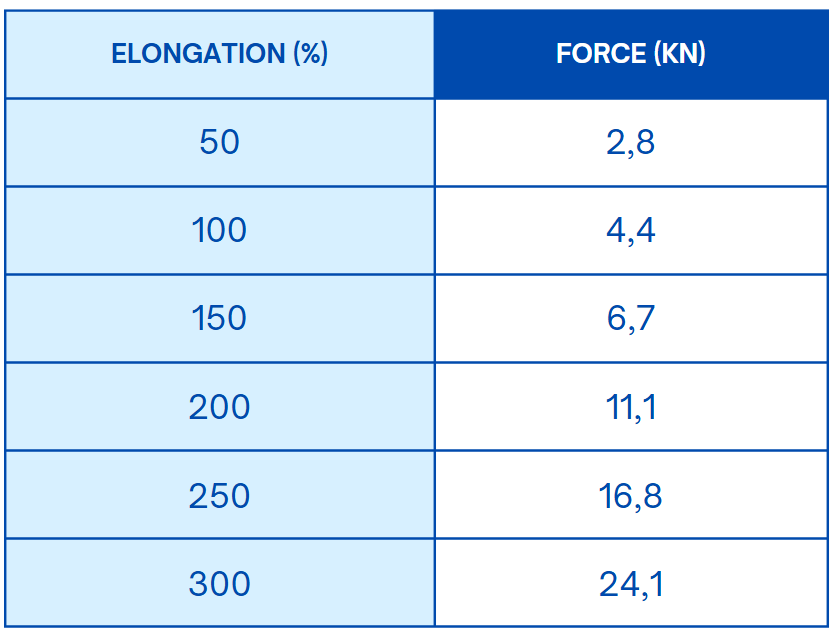

Elastomer with a hardness of 65 Shore A
